Astronaut Soundfield - Classroom & Teacher Voice Amplification System

Astronaut Soundfield - Classroom & Teacher Voice Amplification System

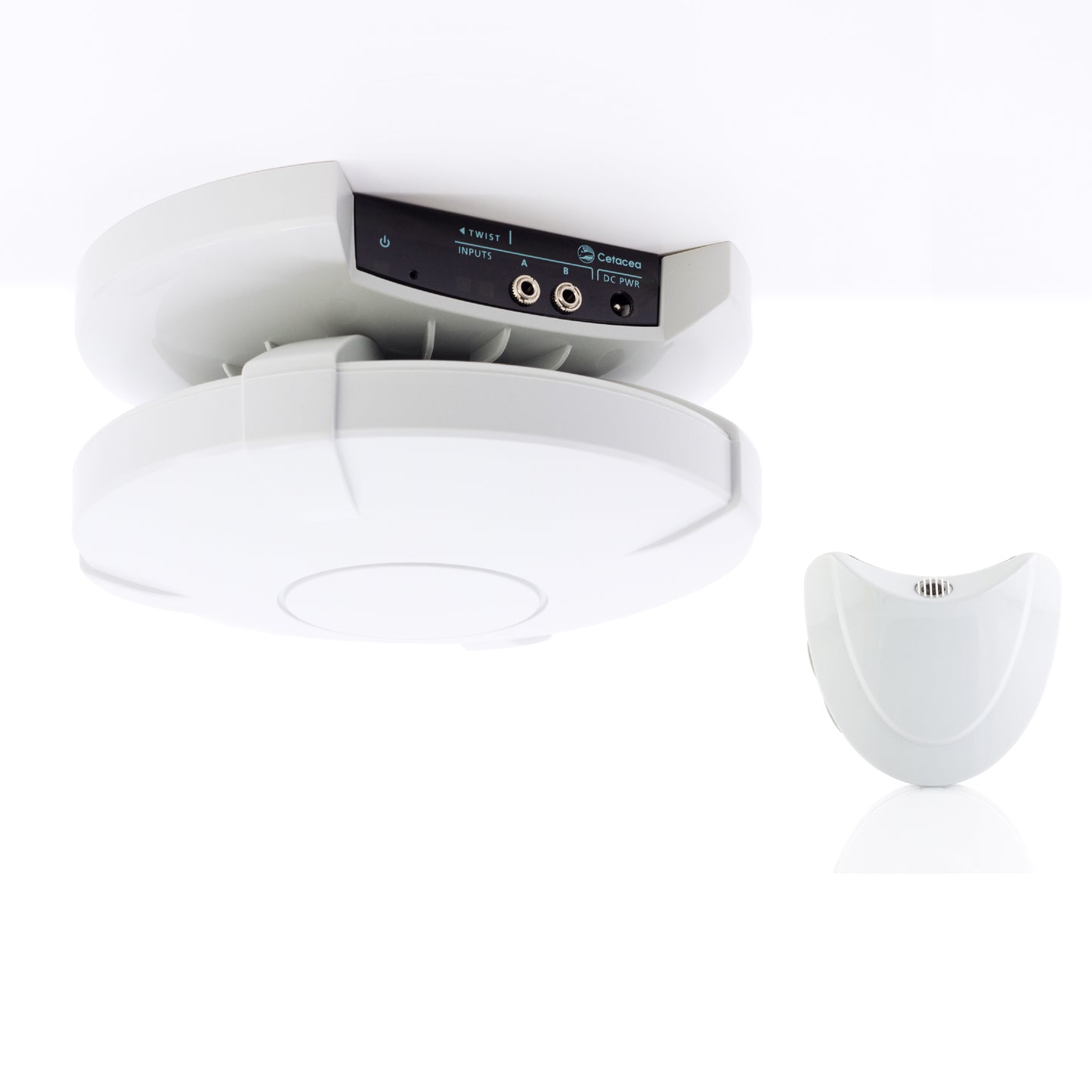

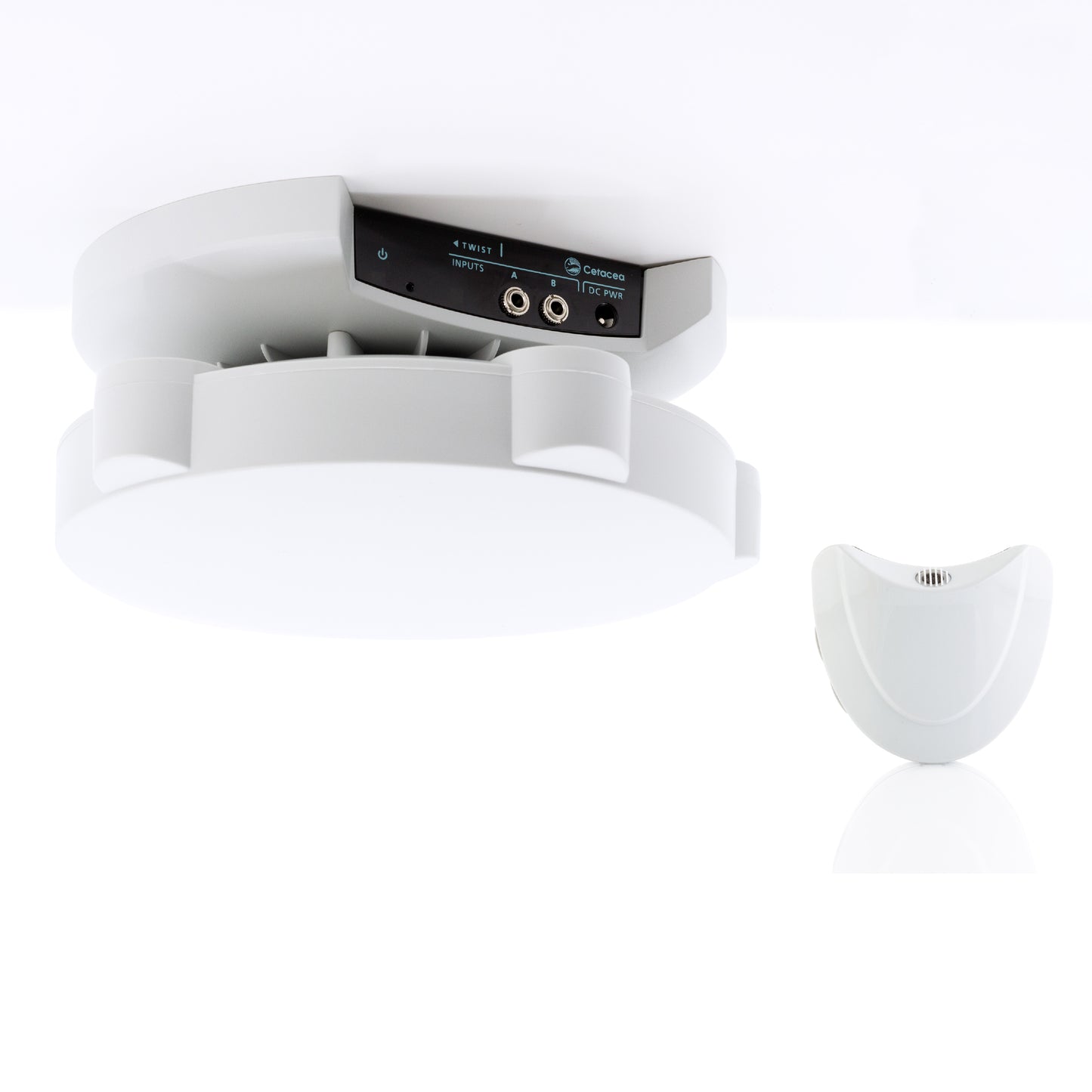

ASTRONAUT SOUNDFIELD The "Soundfield" version of the Astronaut speaker has an integrated wireless receiver for connecting the Orbiter Pendant Microphone. This is our simplest, all-in-one solution for complete voice and multimedia amplification in the classroom.

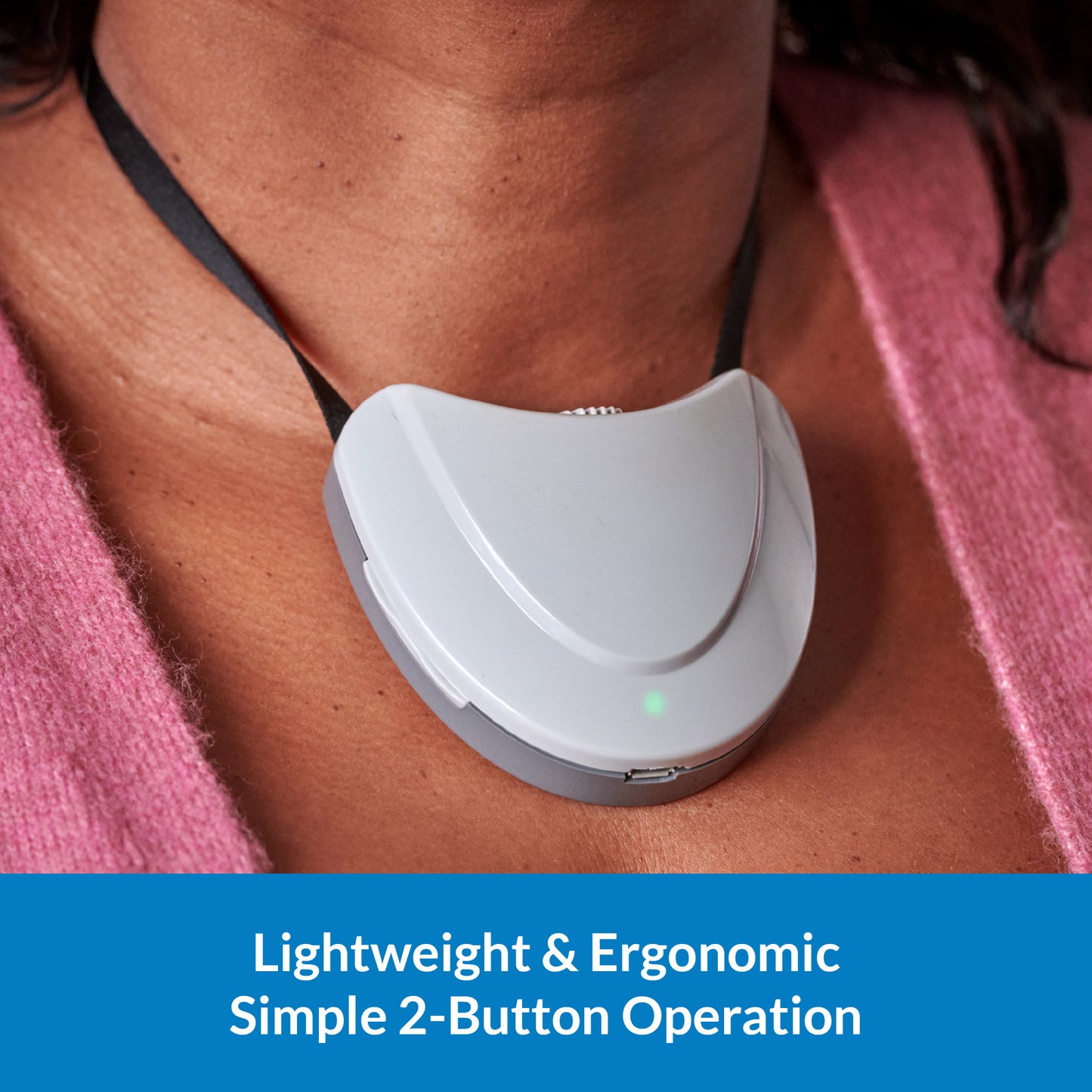

WIRELESS TEACHER MICROPHONE The included Orbiter Pendant Microphone is designed for all-day use in teaching and training environments. Its lightweight pendant-style design and simple 2-button operation are intuitive and ergonomic so as not to interfere with daily instruction.

SPEECH INTELLIGIBILITY The goal of the Orbiter it to lift the teacher's voice evenly across the classroom in order to enhance speech intelligibility which leads to improved learning comprehension and word recognition. Loudness alone is not the goal.

PRISTINE VOCAL CLARITY From the custom-designed transducer to the pre-equalized amplifier, the Astronaut provides exceptional vocal clarity not only from the Orbiter teacher microphone, but also from multimedia and curriculum audio sources.

OPERATE 2 MICS SIMULTANEOUSLY Pair two Orbiter microphones to one Astronaut Soundfield speaker for simultaneous team teaching in the classroom. A second microphone also makes for a perfect pass-around microphone for students.

SIMPLE INSTALLATION The Astronaut can be easily mounted to a false or hard-surface ceiling using the included bracket system. It features a security mechanism to prevent unauthorized speaker removal and allows for tethering to the ceiling's support structure in earthquake-prone areas.

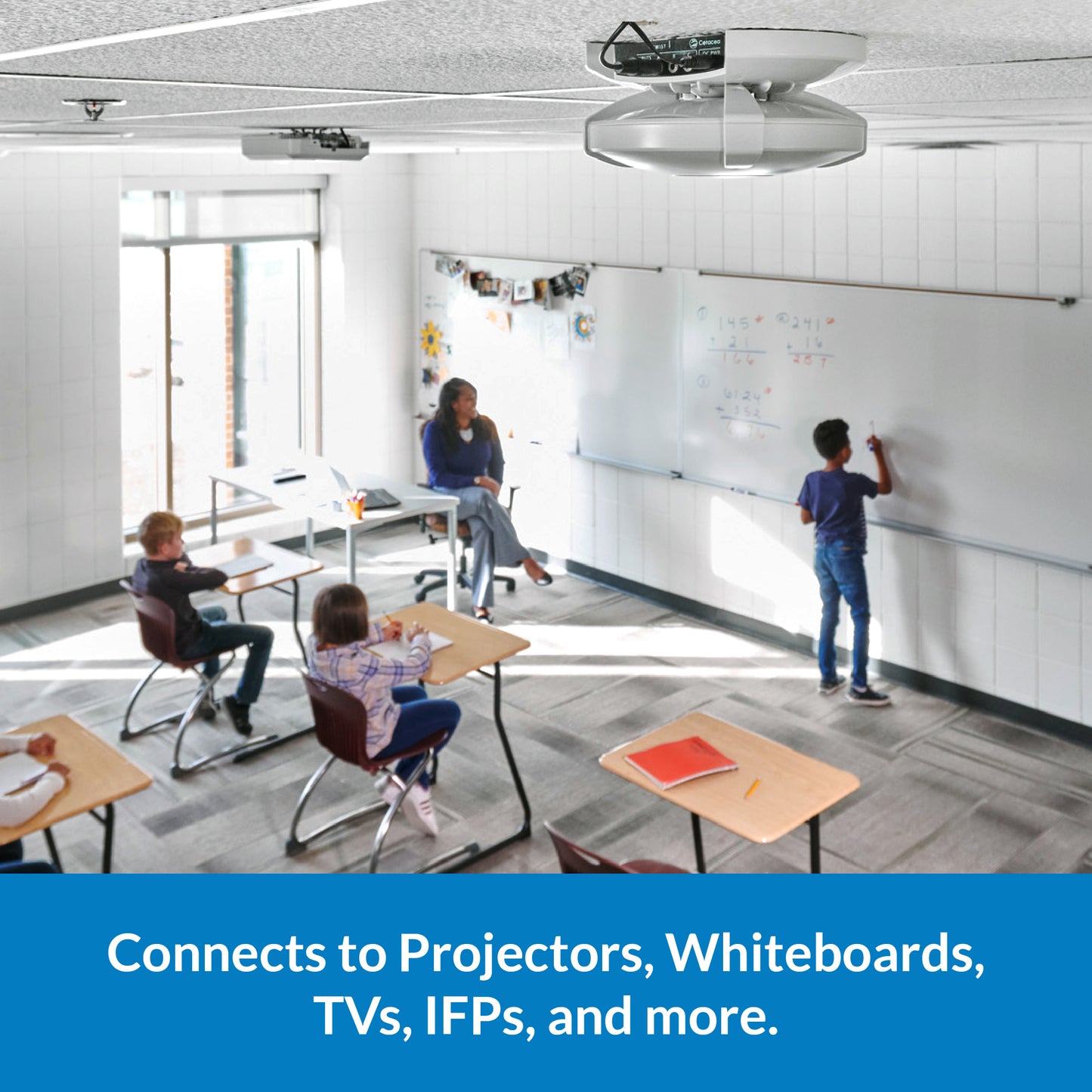

FOR PROJECTORS & WHITEBOARDS Integrated projector and whiteboard speakers lack sufficient vocal fidelity and acoustic frequency balance for student comprehension and learning. Connecting the Astronaut speaker to one of these devices is straightforward and no more complicated than adding external speakers to a TV.

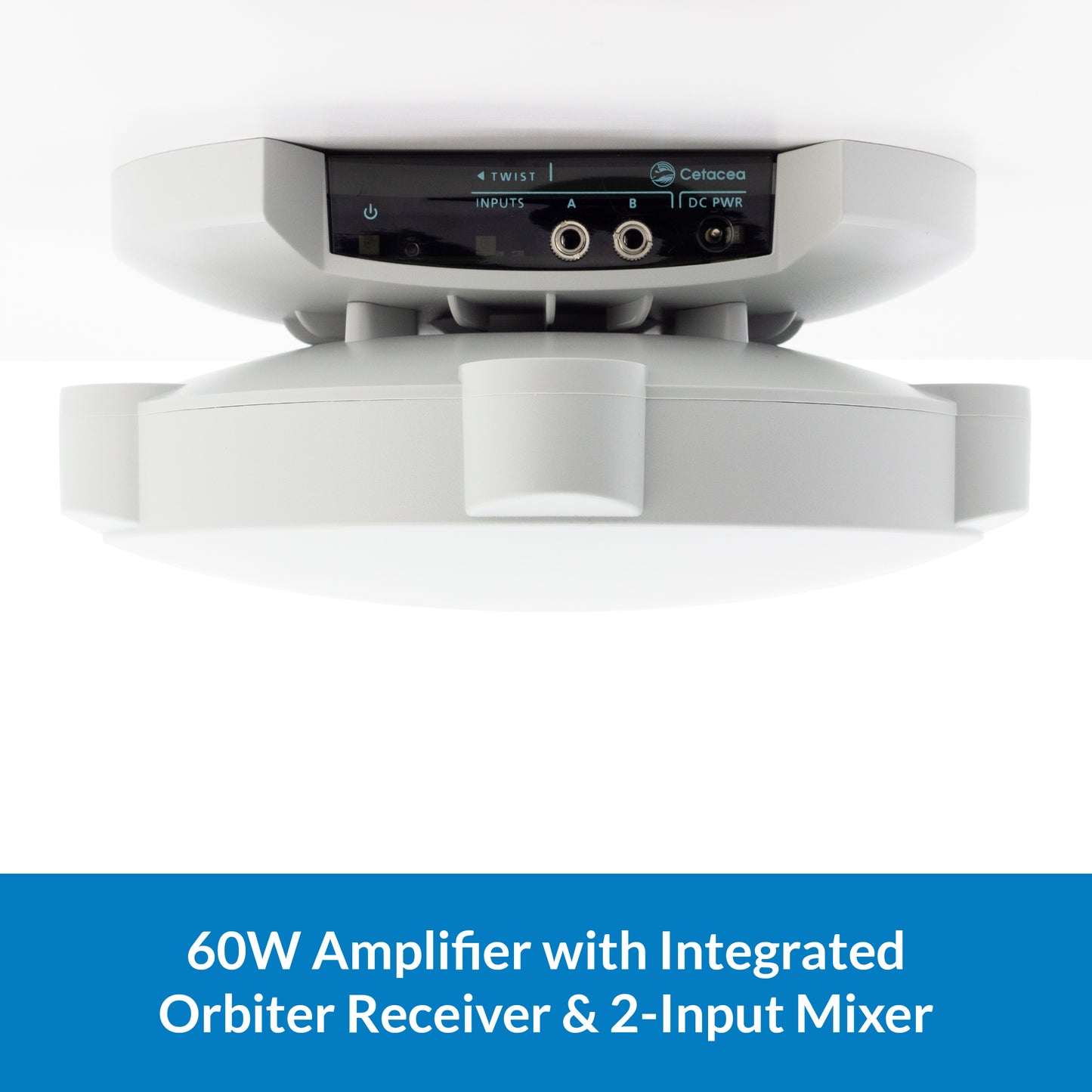

WANT MORE BASS? Go for the Astronaut XL Soundfield. Not only is it louder for big rooms, more ambient spaces, or rooms with high ceilings, it is also equipped with a larger transducer for punchier bass when high-impact multimedia is desired.

What's In The Box

  • Astronaut Soundfield Speaker

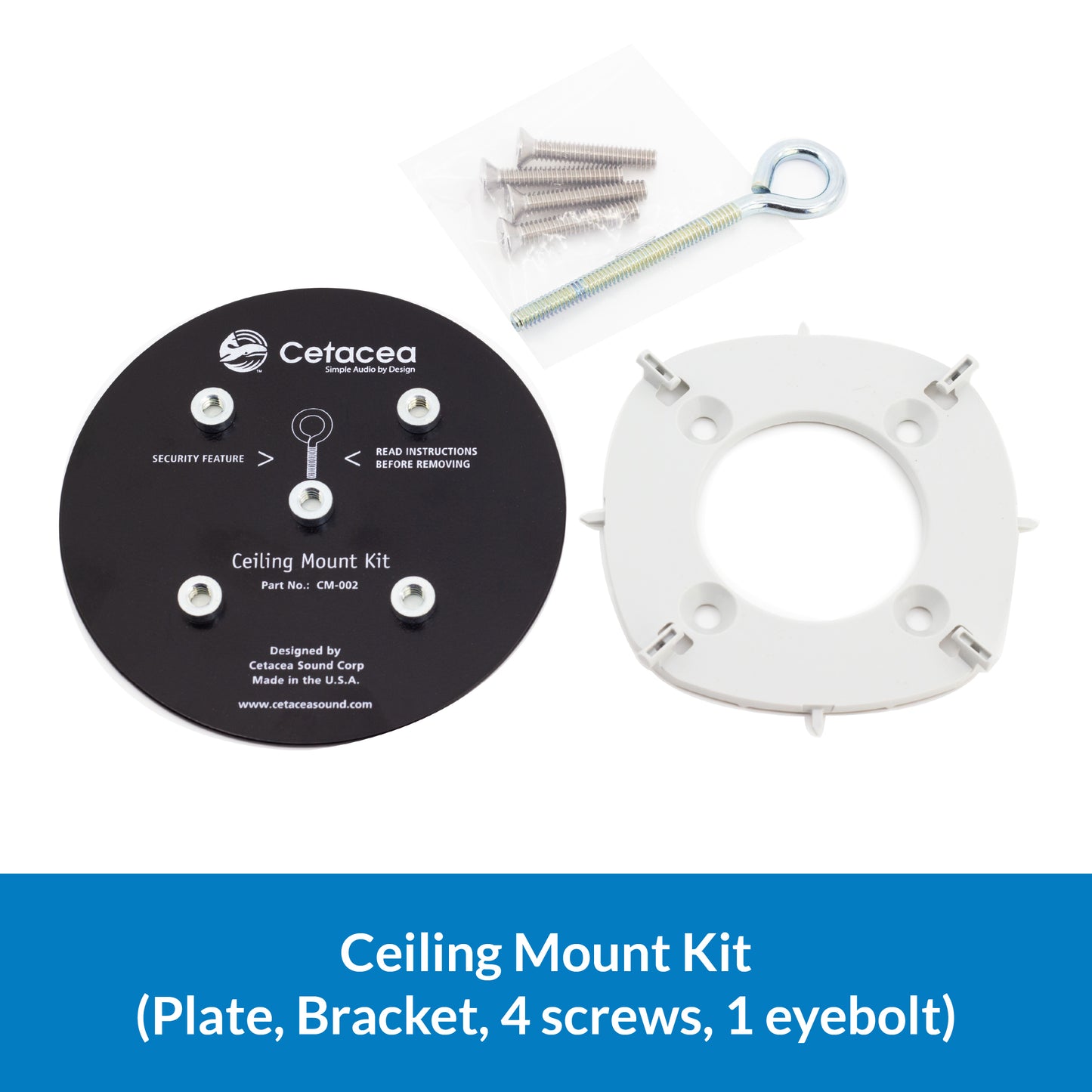

  • Ceiling Mount Kit

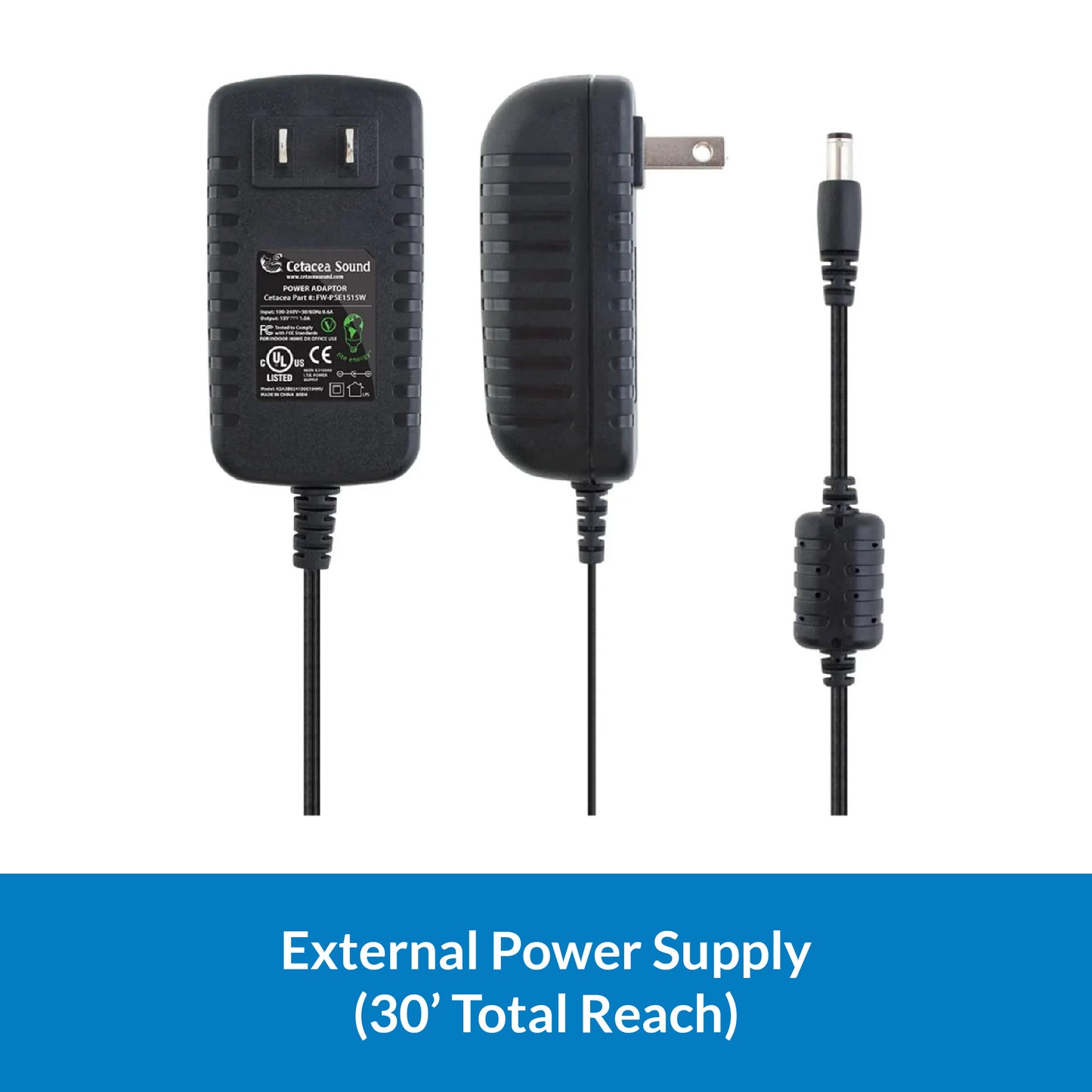

  • Astronaut Power Supply
  • DC Power Extension Cable

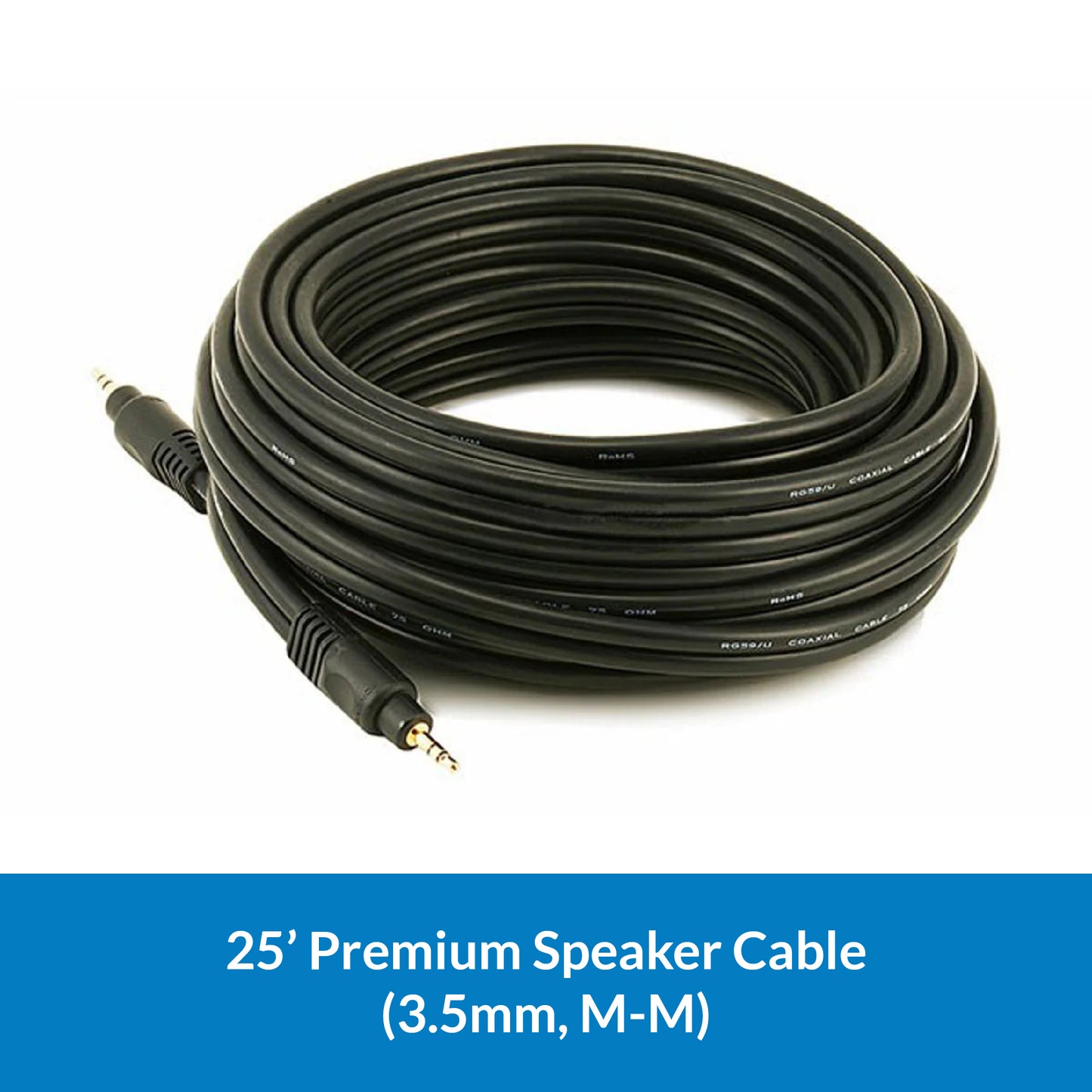

  • 25' Speaker Cable, 3.5mm, M-M

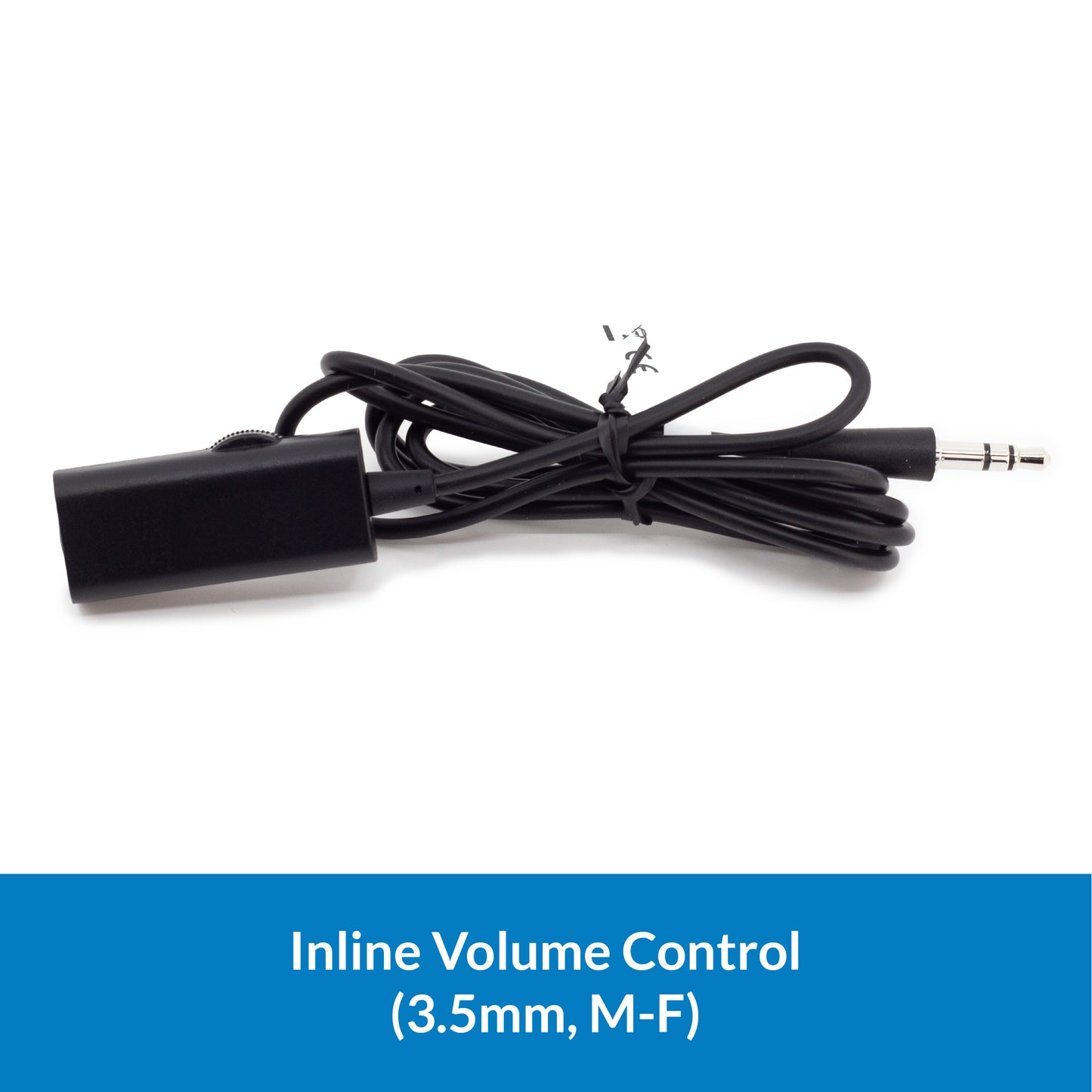

  • In-line Volume Control, M-F
  • Orbiter Pendant Microphone

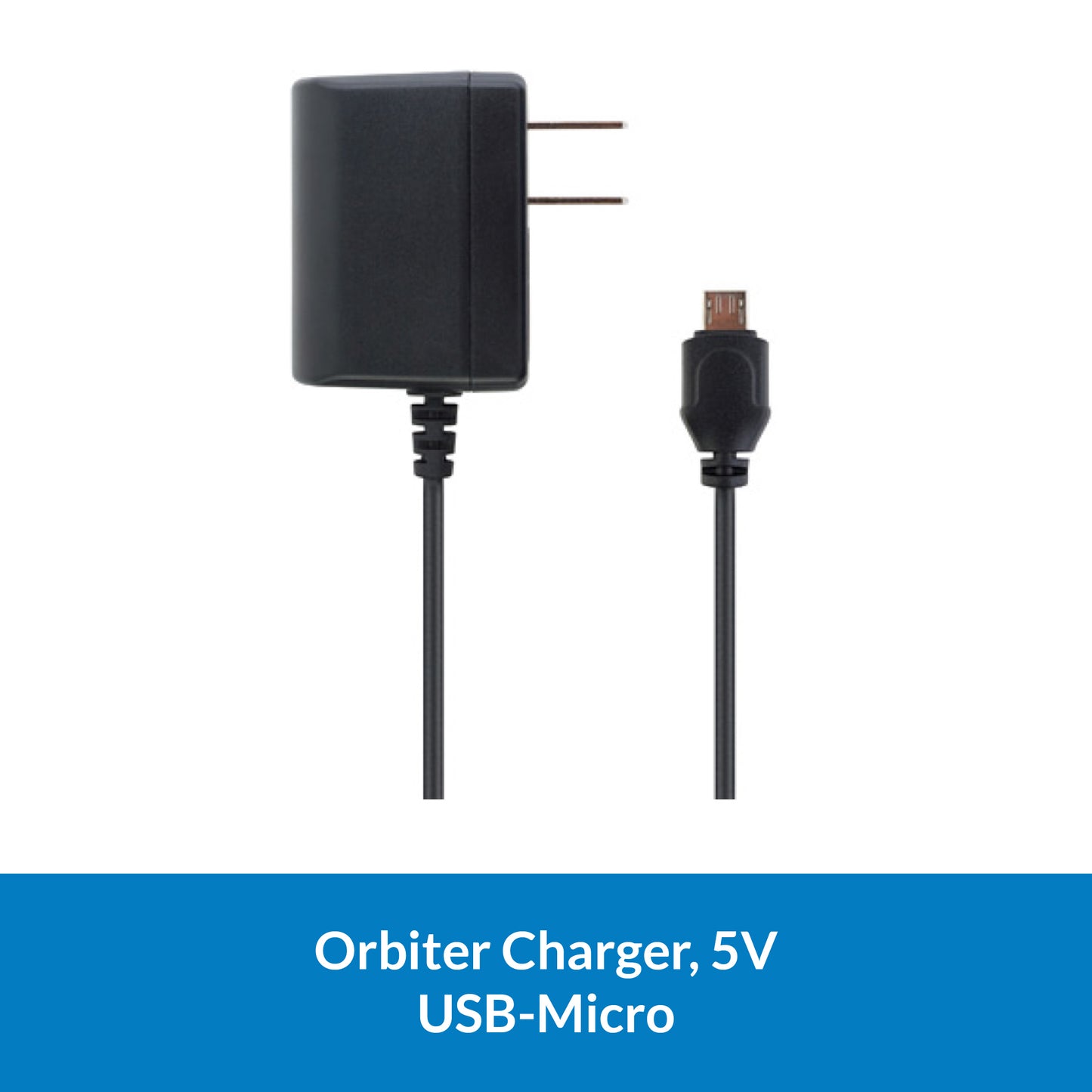

  • Orbiter Charger
$699.00 USD
$699.00 USD
Sale Sold out
Free Ground Shipping
Model

ASTCLR-INT1X-ORB
View full details

Not Just Better Audio but Correct Audio for Student Learning & Comprehension

The key technology behind the Astronaut Soundfield is its omni-directional acoustic package. This allows all students to hear the same vocal presentation, regardless of where they are seated. No other speaker system design achieves this as efficiently as the Astronaut. Only one speaker is required in a standard size classroom of 900 to 1,200 sqft.

  • Why Teacher Voice Amplification?

    Research recommends that target speech should average about 15 dB (decibels) above the ambient background noise in a room in order for students to have the best opportunity to comprehend the words spoken. For reference, a quiet room is about 40 dB when empty and can easily approach 60 dB in a student-filled room, which is about conversation level. So, in an occupied classroom, the teacher will be required to project their voice in order to be heard at 15 dB (SNR).

  • Teachers Benefit Too

    Teaching is one of the few professions that requires 6+ hours of presentation every day. And, one of the major illnesses that keeps teachers out of the classroom is vocal-strain. We regularly receive calls from teachers who are so reliant on their Orbiter microphone, it is hard to teach without it!

Operating the Astronaut Soundfield & Orbiter Pendant Microphone

  • Volume Control

    Setting the volume is best done with a second person listening from the audience location who can help you determine the correct volume for the classroom. Hint: once the teacher can hear themselves, it's probably too loud!

  • Master Button

    The master control button on the back of the Orbiter is multi-functional. Clicking this button will switch from On to Mute in a cycle. Holding it down for 2 seconds will turn the microphone Off.

  • Astronaut Soundfield LEDs

    A solid green LED simply means the Astronaut Soundfield is powered. A solid amber LED indicates the Orbiter microphone is connected. A flashing amber LED indicates pairing mode.

  • Astronaut Soundfield Mixer

    Multimedia audio from a projector, whiteboard, TV, or IFP are the most common sources for the Astronaut Soundfield. Simply connect a speaker cable between the audio output at the source and audio input on the amplifier. Quality audio cables with high-EMI rejection are important.

Simple Ceiling-Mounted Installation to False or Hard-Surface Ceilings

The Astronaut Soundfield system is typically installed in the middle of the room on a false ceiling. Rooms with ceilings higher than 10' should consider the Astronaut XL Soundfield for its louder 60W amplifier. The included bracket system is very easy to install and can be done with everyday basic tools. Our customers choose to install the system themselves or contract with local installers. No A/V experience is required.

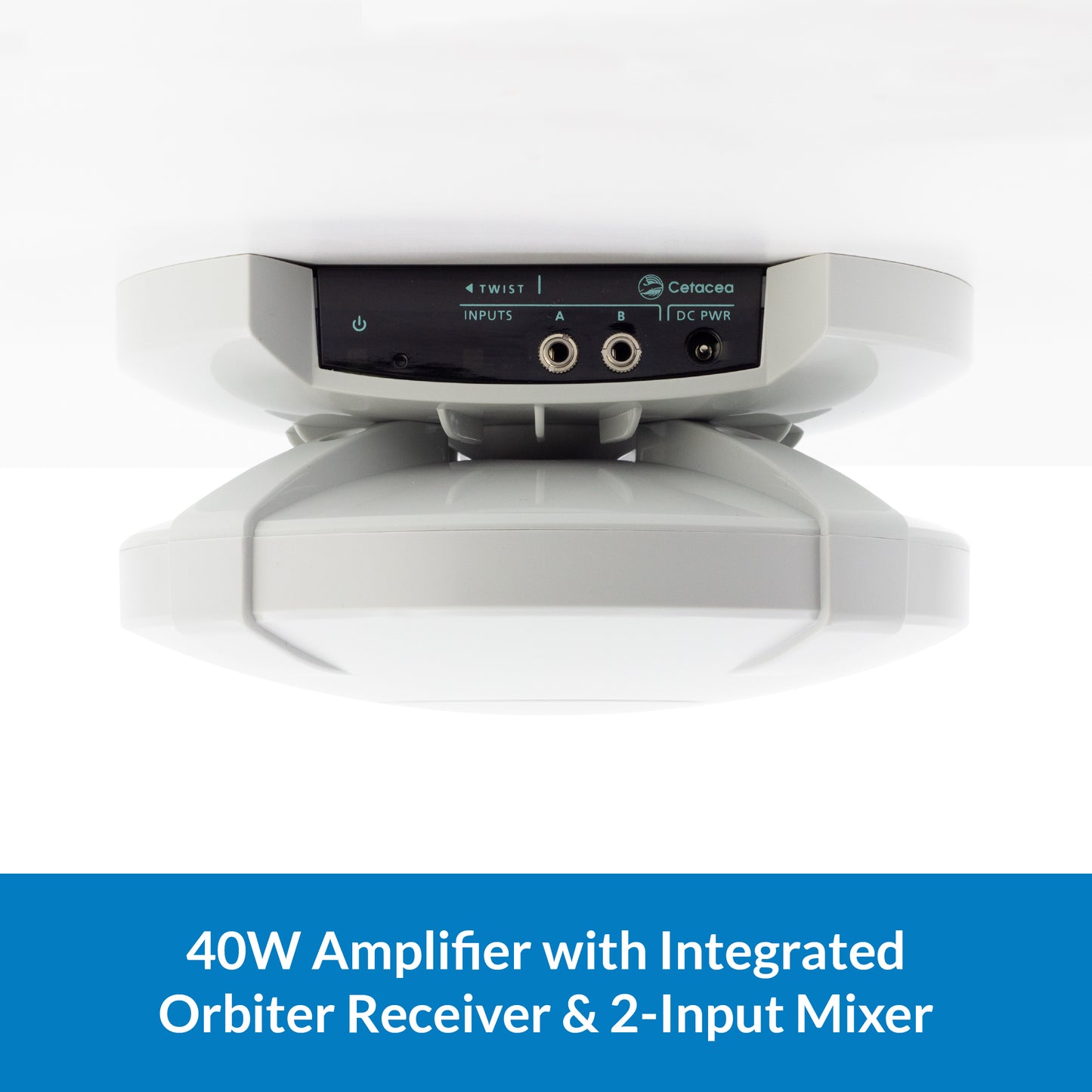

  • Astronaut Soundfield

    Amplifier

    • 40W TSP (CL) / 60W TSP (XL)

    Connections

    • Orbiter Wireless Receiver (Integrated)
    • 2x Stereo / Mono, 3.5mm Mini-Jack

    Power

    • Input: 110 - 240V, 50/60 Hz
    • Output: 15 VDC

    Acoustics (patented)

    • Omni-directional horn with ceiling coupling
    • Magnetically-shielded custom transducer

    Performance

    • Frequency Response: 70-15 kHz @ -3 dB
    • Loudness: 87 dB (CL) / 94 dB (XL)

    Mechanical

    • Diameter: 7.2" (CL) / 8" (XL)
    • Height: 3.5" (CL / XL)
    • Weight: 1.1 lb (CL) / 1.6 lb (XL)

    Orbiter Pendant

    RF

    • 2.4-GHz Digital RF
    • Point-to-Point Pairing
    • Built-In Wireless coexistence
    • Streaming CD-Quality (16-Bit, 44.1 KHz)

    Battery

    • Li-Ion Rechargeable
    • 10-Hour Talk Time

    Transmitter Controls

    • Side: Volume (+ / -)
    • Back: Master (On / Off / Mute)

    Dimensions

    • Transmitter: 2.75" x 3.0" x 1.25"
    • Receiver: 4.0" x 3.25" x 7.0"

    Weight

    • Transmitter: 2.5 oz
    • Receiver: 9.0 oz

    Compliance

    • UL, cUL, CE, ENERGY STAR®, CEC VI

    Warranty

    • Full 5 years on all components

  • What's in the Box

    • Astronaut Soundfield Speaker
    • Ceiling Mount Kit
    • Astronaut Power Supply
    • DC Power Extension Cable
    • 25' Speaker Cable, 3.5mm, M-M
    • Inline Volume Control, M-F
    • Orbiter Pendant Microphone
    • Orbiter Charger

  • Documents

Our Markets

  • Education & Government

    We accept PO's from Education & Government Customers. Please contact us for a quote, a referral to an authorized reseller, or for any questions you about our products or installation guidelines.

  • Corporate Training & Healthcare

    We are a well-known education technology company but our products are also popular in healthcare, corporate training, and conference rooms as well. As long as high-presentation audio is desired, our solutions are a good fit.
